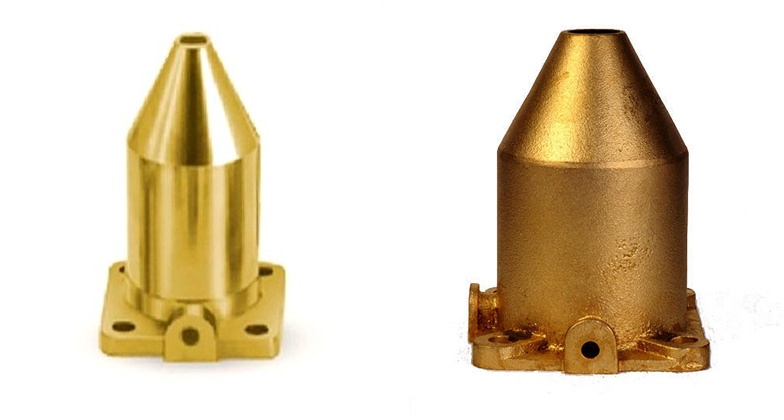

Multimetal Overseas is the most trusted and leading manufacturer, supplier and exporter of Wiping Glands. Customers can buy these Wiping Glands in a wide range of specifications like thickness, size, length, width, etc. at best price.
We provides ready to use Wiping Glands which consists of all the basic components required to terminate the cable to the equipment’s. Wiping Glands are denoted by gland reference number and are compatible with each glands size.
Wiping Glands that exhibit superior levels of performance and are made of copper. These Wiping Glands find place in a wide array of applications like, telecommunications, electrical works etc.
Our high-quality Wiping Glands are well recognized by our worldwide customers. Contact us today with your requirement for best prices.
| Gland Size | Dia over metal sheath of cable (mm) | A (mm) | B (mm) | ⌀C (mm) | ⌀E (mm) | D (mm) | F (mm) | G (mm) | H (mm) | ⌀ (mm) | R (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| X | 12 to 51 | 137 | 90 | 60 | 19 | 90 | 90 | 66 | 66 | 12 | 12 |
| Y | 25 to 78 | 155 | 95 | 89 | 32 | 114 | 123 | 95 | 86 | 14 | 14 |
| Z | 25 to 94 | 195 | 140 | 108 | 32 | 190 | 100 | – | – | 14 | – |
