Split bolt connections join, crimp, or combine main copper earth conductors with tap conductors. Multimet Overseas in India manufactures, supplies, stock and export split bolt connectors across the globe. The split bolts have a captive saddle that distributes pressure across conductors and are composed of a copper alloy with a high conductivity. A regular spanner can be used to span the split bolt’s head. Natural copper alloy or electro tinned are the two finishes available. At Multimet Overseas Split bolt connectors are available at low prices in a number of sizes, materials, and standards upon request.
We manufacture a variety of spit bolts and line taps that meet the material and dimensional criteria of a number of international standards. Brass line taps are made from high-tensile brass in compliance with British Standard BS 2874-CZ112. The nut’s threads are made by a rolling process, which gives it extra clamping force. The pressure pads are made from extruded bras rather than cast bras, which prevents them from separating. Brass line taps are electro tinned natural brass that has been passivated. Copper with a high conductivity is also available. These have been tested and meet international standards such as BS, DIN, UL, and IEC.

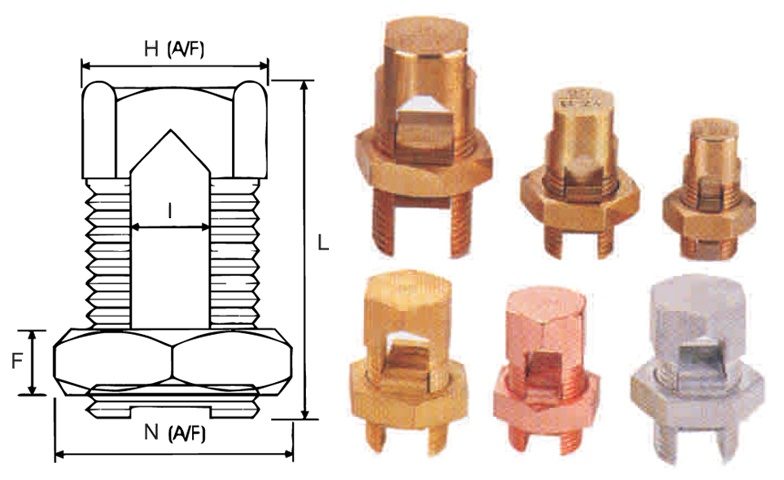

| Cable Size mm² |
I | H (A/F) | N (A/F) | F | L |
|---|---|---|---|---|---|
| 6 | 4.00 | 12.70 | 13.35 | 4.80 | 19.85 |
| 10 | 4.70 | 12.70 | 19.00 | 5.60 | 26.75 |
| 16 | 5.70 | 12.70 | 19.00 | 5.60 | 26.00 |
| 25 | 7.30 | 16.00 | 19.00 | 5.60 | 28.00 |
| 35 | 7.80 | 18.50 | 24.00 | 6.35 | 35.00 |
| 50 | 9.70 | 24.10 | 27.20 | 8.65 | 42.00 |
| 70 | 11.50 | 24.10 | 27.20 | 8.65 | 44.50 |
| 95 | 14.40 | 26.50 | 35.40 | 9.40 | 50.00 |
| 120 | 16.20 | 30.00 | 35.40 | 12.00 | 57.50 |
| 150 | 16.20 | 30.00 | 35.40 | 12.00 | 57.50 |
| 185 | 18.20 | 31.75 | 38.00 | 12.00 | 57.50 |
| 240 | 22.00 | 40.00 | 48.20 | 14.25 | 72.50 |
| 300 | 24.00 | 42.00 | 50.00 | 14.25 | 72.50 |
| 400 | 26.00 | 48.00 | 56.00 | 16.00 | 76.50 |
| 500 | 30.00 | 55.00 | 65.00 | 16.00 | 80.00 |
| Max Cond. Size(mm)² |
Slot Width mm² |
Cross Reference |
Natural Brass |
Electro Tinned |
|---|---|---|---|---|
| 16 | 5.3 | Type A | MMSBR16 | MMSBR16T |
| 25 | 6.6 | – | MMSBR25 | MMSBR25T |
| 35 | 8.3 | Type B | MMSBR35 | MMSBR35T |
| 70 | 10.9 | Type C | MMSBR70 | MMSBR70T |
| 95 | 12.9 | Type D | MMSBR95 | MMSBR95T |
| 185 | 18.5 | Type E | MMSBR185 | MMSBR185T |
Multimet offers Split Bolts / Line Taps at competitive prices. You can request the latest prices of Split Bolt Connectors by sending us an email at sales@multimetcopper.com We can assure you of one of the best prices for all types of Split Bolts / Line Taps.
Copper Split Bolt Connectors Supplier, Tin Plated Copper Split Bolt Connectors Exporter, Brass Split Bolts / Line Taps Manufacturer, Split Bolt Connector With Round Head Stockist
We maintain a huge stock of split bolt connectors in different sizes, materials and specifications to fulfill the urgent demands of our customers worldwide.
Split Bolt Connectors are mainly used in electrical power applications, grounding & bonding, electrical industry, electrical equipment, electrical Contractor, manufacturing industries, construction industry, petrol & chemical industry, cement industry, etc.
