Compression Cable Lugs – Standard Barrel

Home Compression Cable Lugs – Standard Barrel

Compression Cable Lugs - Standard Barrel Manufacturer, Supplier & Exporter in India

Most Prominent Supplier & Manufacturer of Compression Cable Lugs – Standard Barrel, Compression Cable Lugs – Standard Barrel Stockist in Mumbai, India.

Compression Cable Lugs – Standard Barrel Manufacturer in India.

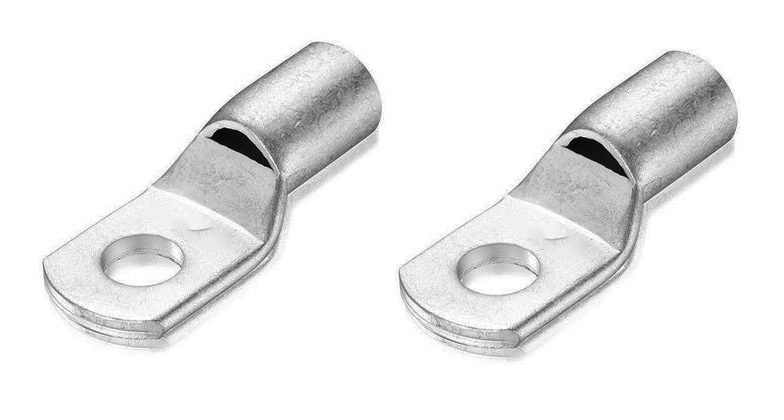

Multimet Overseas is the most trusted and leading manufacturer, supplier and exporter of Copper Compression Lugs – Standard Barrel in India. Copper Cable Lugs are manufactured from superior quality raw materials made with electrolytic copper for high conductivity and tin-plated for corrosion resistance. Copper Compression Lugs are designed for fast assembly and best performance.

Copper Compression Cable Lugs are available in a wide range of sizes ranging from 0.5 Sq.mm to 1200 Sq.mm with different stud hole. Multimet Overseas Copper Lugs are manufactured according to national and international standards like BS, DIN, UL, CUL and IEC. These Copper Compression Lugs – Standard Barrel are provided with inspection window, thus ensuring full conductor insertion.

Our Copper Compression Cable Lugs – Standard Barrel can be easily instal and have excellent electrical and mechanical properties, high wall thickness and are readily available as we are huge stockist of copper cable lugs.

Our high-quality Compression Cable Lugs – Standard Barrel are well recognized by our worldwide customers. If you looking to buy these Compression Cable Lugs – Standard Barrel. Contact us today with your requirement for the best prices.

Compression Cable Lugs – Standard Barrel Specifications:

CABLE E mm2	Ø E	DIM IN mm (A)	DIM IN mm (C)	DIM IN mm (D)	DIM IN mm (P)	DIM IN mm (B)	DIM IN mm (L)	PER BOX
1.5	4.2	1.8	3.7	8	9	5	16	2000
	5.2			8	10		16
	6.2			10	12		18
2.5	4.2	2.4	4	8	9	7	18	2000
	5.2			8	9		18
	6.2			10	12		20
	8.2			10	15		24
4	5.2	3.1	4.8	10	11	7	21	2000
	6.2			10	11		21
	8.2			12	15		25
6	4.2	3.8	5.5	10	11	11	26	1000
	5.2
	6.2
	8.2			12	15		30
	10.5			14	19		39
10	5.2	4.5	6.2	11	13	11	27	1000
	6.2			11	13		27
	8.2			12	17		30
	10.5			17	23		35
	13	4.7	7.1	17	23		35
16	5.2	5.4	7.1	11	15	13	32	500
	6.2
	8.2
	10.5			15	23	11	36
	13			18	23	11	36
20	8.2	6.1	7.7	12	14	12	30	300
25	5.2	6.8	8.8	13	15	12	32	300
	6.2
	8.2
	10.5			17	22		38
	13			17	22		38
35	5.2	8.2	10.6	15	20	13	38	200
	6.2
	8.2
	10.5
	13			17			41
	17			22	33		52
50	6.2	9.5	12.4	18	20	17	42	150
	8.2
	10.5
	13
70	8.2	11.1	14.3	21	23	18	46	100
	10.5
	13
	14.7
	17			24	27
95	10.5	13.5	17.4	25	28	20	55	75
	13
	14.7
	17				30		60
120	8.2	15	19.4	28	27	23	60	50
	10.5
	13
	14.7
	17				33		65
150	8.2	16.5	21.2	30	35	26	70	40
	10.5
	13
	14.7
	17
185	10.5	18.5	23.5	34	40	32	82	30
	13
	14.7
	17
240	10.5	21	26.5	38	40	38	92	20
	13
	14.7
	17
	21
300	10.5	23.5	30	43	45	41	101	15
	13
	14.7
	17
	21
	BLANK
400	17	27.5	35.5	52	50	48	113	10
	21
	BLANK
500	17	30	38	56	58	52	130	5
	21
	BLANK
630	17	34.5	44	65	68	56	148	5
	21
	27
	BLANK
800	17	39	50.6	72	77	78	175	1
	21
	BLANK
1000	17	43	56.2	80	90	90	200	1
	21
	27
	BLANK
1200	27	46	60.4	87	90	100	210	1
1200	BLANK	46	60.4	87	90	100	210	1
