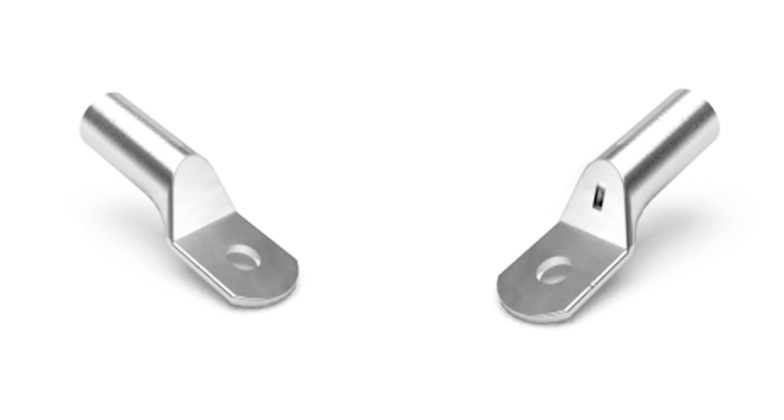

Compression Cable Lugs – N series

Home Compression Cable Lugs – N series

Compression Cable Lugs - N series Manufacturer, Supplier & Stockist in India

Most Prominent Supplier & Manufacturer of Compression Cable Lugs – N series , Compression Cable Lugs – N series Stockist in Mumbai, India.

Compression Cable Lugs – N series Manufacturer in India.

Multimet Overseas is the most trusted and leading manufacturer, supplier and exporter of Copper Compression Cable Lugs – N series in India. Copper Cable Lugs are manufactured from superior quality raw materials made with electrolytic copper for high conductivity and tin-plated for corrosion resistance. Copper Compression Lugs are designed for fast assembly and best performance.

Copper Compression Cable Lugs are available in a wide range of sizes ranging from 0.5 Sq.mm to 1200 Sq.mm with different stud hole. Multimet Overseas Copper Lugs are manufactured according to national and international standards like BS, DIN, UL, CUL and IEC. These Compression Cable Lugs – N series are provided with inspection window, thus ensuring full conductor insertion.

Our Compression Cable Lugs – N series can be easily instal and have excellent electrical and mechanical properties, high wall thickness and are readily available as we are huge stockist of copper cable lugs.

Our high-quality Compression Cable Lugs – N series are well recognized by our worldwide customers. If you looking to buy these Compression Cable Lugs – N series . Contact us today with your requirement for the best prices.

Compression Cable Lugs – N series Specifications:

CABLE mm2	Ø E	DIM IN mm (A)	DIM IN mm (C)	DIM IN mm (D)	DIM IN mm (P)	DIM IN mm (B)	DIM IN mm (L)	PER BOX
6	5.2	3.8	5.5	10	14	9	28	1000
6	6.2	3.8	5.5	10	14	9	28	1000
10	5.2	4.5	6.21	11	15	9	28	1000
	6.2			11	15	9	28
	8.2			16	25	12	43
	10.5			16	25	12	43
16	6.2	5.5	7	12	16	12	36	500
	8.2			12	16	12	36
	10.5			16	24	12	43
	13			16	24	12	43
25	6.2	6.8	8.8	13	16	12	37	300
	8.2			13	16
	10.5			16	25
	13			18	25		43
35	6.2	8.3	10.6	15	20	18	43	200
	8.2
	10.5
	13			17	26		50
50	6.2	9.5	12.4	18	23	16	49	150
	8.2
	10.5
	13
70	8.2	11.1	14.3	21	25	20	55	100
	10.5
	13
	14
95	10.5	13.5	17.4	25	27	23	62	75
	13
	14
	17				33		68
120	10.5	15	19.4	28	28	28	72	50
	13
	14
	17
	21				33		77
150	10.5	16.5	21	30	32	30	75	40
	13
	17
	21
185	10.5	18.5	23.5	34	38	31	85	30
	13
	14
	17
	21
240	13	21	26.5	38	43	35	95	20
	17
	21
300	17	23.5	30	43	47	44	110	15
300	21	23.5	30	43	47	44	110	15
400	17	27.5	35.5	52	48	40	112	10
400	21	27.5	35.5	52	48	40	112	10
500	17	30	37	55	50	75	148	5
500	21	30	37	55	50	75	148	5
630	17	34.5	44	60	50	70	148	5
630	21	34.5	44	60	50	70	148	5
