Compression Cable Lugs - DIN 46235 Manufacturer

Most Prominent Supplier & Manufacturer of Compression Cable Lugs – DIN 46235, Compression Cable Lugs – DIN 46235 Stockist in Mumbai, India.

Compression Cable Lugs – DIN 46235 Manufacturer in India.

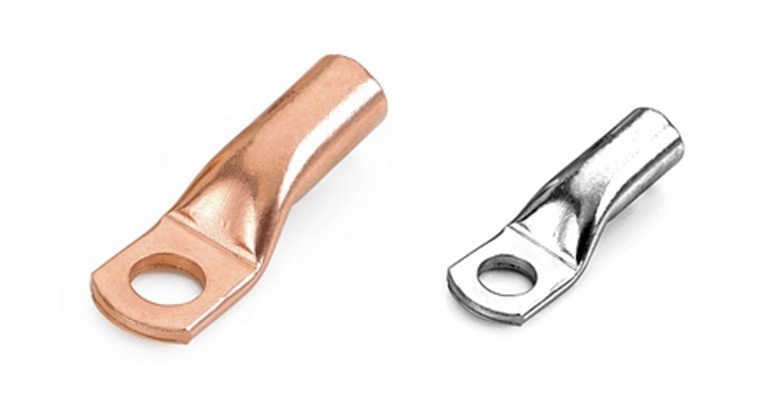

Multimet Overseas is the most trusted and leading manufacturer, supplier and exporter of Copper Compression Lugs – DIN 46235. We are one of the renowned manufacturers, exporter and supplier of Copper Compression Lugs – DIN 46235 that are designed as per the need of various several small- and large-scale industries.

These Copper Lugs are used for interconnecting heavy gauge power, cables to bus bars, relays, batteries, solar power inverters, power cables, grounding devices and much more. Our Copper Compression Cable Lugs – DIN 46235 can be easily instal and have excellent electrical and mechanical properties, high wall thickness and are readily available as we are huge stockist of copper cable lugs.

Our high-quality Copper Compression Lugs – DIN 46235 are well recognized by our worldwide customers. If you looking to buy these Copper Compression Lugs – DIN 46235. Contact us today with your requirement for the best prices.

Compression Cable Lugs – DIN 46235 Specifications:

CABLE mm2	Ø E	DIM IN mm (A)	DIM IN mm (C)	DIM IN mm (D)	DIM IN mm (P)	DIM IN mm (B)	DIM IN mm (L)	PER BOX
10	6.4	4.5	7	9	16	10	35	400
10	8.4	4.5	7	13	20	10	37	400
16	6.4	5.5	8.5	13	15.5	20	44	150
16	8.4	5.5	8.5	13	20	20	46	150
25	6.4	7	10	14	15.5	20	46	150
25	8.4	7	10	16	20	20	48	150
35	8.4	8.2	12.5	17	20	20	54	100
	10.5			19	24
	13			21	26
50	8.4	10	14.5	20	20	28	64	75
	10.5			22	24
	13			24	26
70	8.4	11.5	16.5	24	20	28	67	50
	10.5				24
	13				26
95	10.5	13.5	19	28	24	35	78	50
95	13	13.5	19	28	26	35	78	50
120	10.5	15.5	21	32	31	35	86	25
	13				33
	17				39
150	10.5	17	23.5	34	31	35	94	25
	13				33		94
	17				39		97
185	10.5	19	25.5	37	31	40	98	20
	13				33		98
	17				39		101
240	13	21.5	29	42	33	40	108	10
	17				39		111
	21				43		113
300	17	24.5	31	48	40	50	122	10
300	21	24.5	31	48	40	50	122	10
400	17	27.5	38.5	54	50	70	140	5
400	21	27.5	38.5	54	50	70	140	5
500	17	31	42	60	50	70	150	5
500	21	31	42	60	50	70	150	5
630	17	34	44	62	50	80	160	5
630	21	34	44	62	50	80	160	5
800	21	40	52	75	60	100	195	1
800	27	40	52	75	60	100	195	1
1000	21	44	58	85	60	100	195	1
1000	27	44	58	85	60	100	195	1
