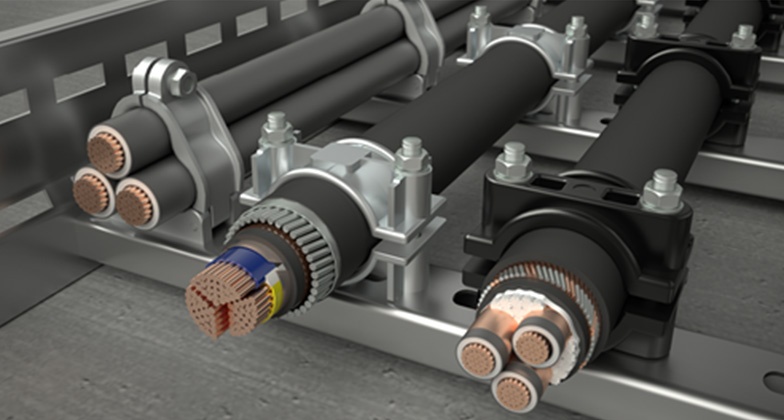

Multimet Overseas is the most trusted and leading manufacturer, supplier and exporter of Cable Cleat For Single / Multi-Core Application. Cable Cleats used to clamp and retain low, medium and high voltage cables in the event of a short circuit, including 11kV/33kV MV-HV power cables – single, multi-core cable configurations can be cleated using our best quality manufactured cable cleats in a choice of materials including nylon, stainless steel and aluminium.
These Cable Cleat For Single / Multi-Core Application Suitable for supporting Single Core PVC/ HRPVC, XLPE, XLPE Insulated Aluminium, Un- Armoured, Earth And Un Earth Power Cables from 1.1 Kv to 132 KV Grade Used in Tunnels, Bridges, Power Generation Stations, Sub-Stations, Thermal Power Stations, Switchgear Plants, Industrial Installation, Terminal Kits These can be used for indoor or outdoor for vertical or horizontal running cables inside trenches or on racks / galleries.
Our Cable Cleat For Single / Multi-Core Application are suitable for use with cable diameters 30 to 135 mm for a Plain finish for normal industrial areas or indoor application. Our high-quality Cable Cleats are well recognized by our worldwide customers.
Contact us today with your requirement for the best prices.
Cable Dia (mm) / Min. | Cable Dia (mm) / Max. | Cable Dia With Liner (mm) / . Min. | Cable Dia With Liner (mm) / Liner Thk. | Cable Dia With Liner (mm) / Max. | W (mm) | H (mm) | D (mm) | P (mm) | Fixing Bolt |
---|---|---|---|---|---|---|---|---|---|
30 | 40 | 26 | 2 | 36 | 93 | 42 | 45 | 71 | 2 x M10 |
40 | 50 | 36 | 2 | 46 | 104 | 52 | 45 | 82 | 2 x M10 |
48 | 55 | 44 | 2 | 51 | 108 | 60 | 45 | 86 | 2 x M10 |
55 | 64 | 51 | 2 | 60 | 118 | 67 | 50 | 95 | 2 x M10 |
64 | 70 | 60 | 2 | 66 | 125 | 76 | 50 | 102 | 2 x M10 |
70 | 76 | 66 | 2 | 72 | 130 | 82 | 50 | 108 | 2 x M10 |
76 | 83 | 72 | 2 | 79 | 138 | 90 | 60 | 115 | 2 x M12 |
83 | 89 | 79 | 2 | 85 | 144 | 97 | 60 | 121 | 2 x M12 |
89 | 95 | 85 | 2 | 91 | 152 | 107 | 60 | 130 | 2 x M12 |
95 | 101 | 91 | 2 | 97 | 158 | 113 | 60 | 136 | 2 x M12 |
101 | 115 | 97 | 2 | 111 | 175 | 119 | 85 | 152 | 2 x M12 |
115 | 125 | 111 | 2 | 121 | 180 | 133 | 85 | 158 | 2 x M12 |
125 | 135 | 121 | 2 | 131 | 192 | 143 | 85 | 170 | 2 x M12 |
