Multimet Overseas is the most trusted and leading manufacturer, supplier and exporter of Aluminium Connectors. Cembre AA-M series of cable connector lugs are made from aluminium of a purity equal to or greater than 99.5% – designed to terminate aluminium conductors including low stranded compacted conductors to BS6360 (withdrawn) and replacement standard BS EN 60228:2005 (Specification for Conductors in Insulated Cables.

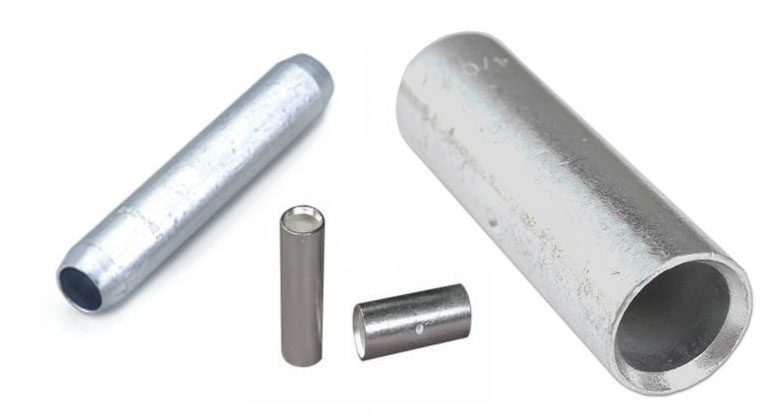

We offer a complete range of Aluminum Through Connectors that are used for joining aerial hard drawn copper conductors or insulated copper conductors. The split bolts are made from a high conductivity copper alloy with captive saddle which applies a distributed pressure to conductors. The head of the split bolt is suitable for standard spanner to fit in They can be supplied in natural copper alloy or electro tinned.
Our high-quality Aluminium Connectors are well recognized by our worldwide customers. If you looking to buy these Aluminium Connectors. Contact us today with your requirement for best prices.
| CABLE mm2 | DIM IN mm (A) | DIM IN mm (C) | DIM IN mm (L) | PER BOX |
|---|---|---|---|---|
| 16 | 5.5 | 11 | 55 | 200 |
| 25 | 6.5 | 15 | 70 | 75 |
| 35 | 8 | 15 | 85 | 75 |
| 50 | 9.7 | 18 | 85 | 40 |
| 70 | 11 | 18 | 106 | 35 |
| 95 | 13.1 | 20 | 106 | 20 |
| 120 | 14.7 | 22 | 106 | 20 |
| 150 | 16.5 | 25 | 135 | 10 |
| 185 | 18.1 | 28 | 135 | 5 |
| 240 | 21 | 28 | 145 | 5 |
| 300 | 23.2 | 34 | 150 | 5 |
| 400 | 26 | 38 | 205 | 5 |
| 500 | 29 | 45 | 205 | 5 |
| 630 | 33.5 | 45 | 220 | 5 |
| 800 | 37.6 | 58 | 280 | 2 |
| 1000 | 41.5 | 60 | 280 | 2 |
